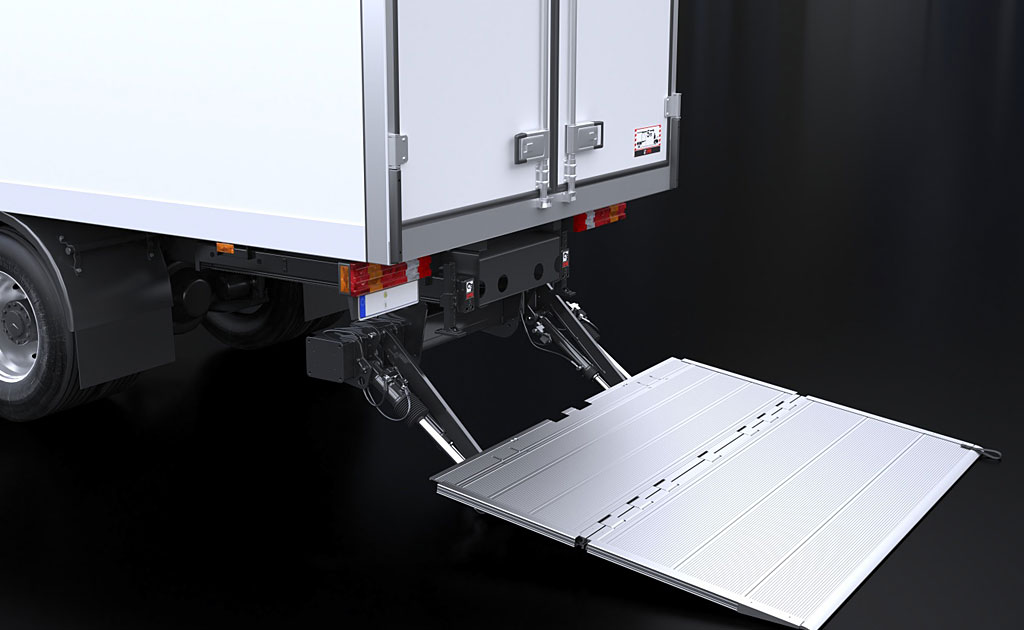

ZEPRO ZS 150/200/250 MK2

A heavy duty slider lift with single folding platform, designed for a GVW of over 12 tonnes. 1500kg, 2000kg and 2500kg lifting capacities.

  • The ZS Mk2 features a powder-painted, high-strength steel frame and platforms in different sizes, and options.
  • Robust and sturdy design with corrosion-protected cylinders and the new solid state control system makes this the perfect choice for all heavy trucks.
  • Smooth movement is enabled by a sliding system that has a hydraulic motor driving two sprockets which rotate and run under the slide profiles guided by simple, sturdy chains. Operation noise is kept to a minimum with a built-in hydraulic unit that also houses sensitive components.
  • A slimline version designed to maximise ground clearance is also available.
  • All capacity versions offer spring-assisted, folding aluminium platforms to ensure low weight and ease of use when operating manually.
Slider Lifts ZEPRO ZS 150/200/250

Specification

Title Separator
Lifting Capacity (kg)
1500, 2000, 2500
Platform Material
Aluminium
Maximum Width (mm)
2400
Voltage of Lift (v)
-
Installed Weight (kg)
-
